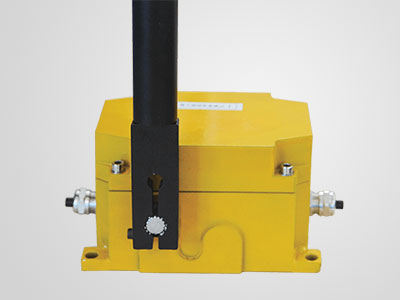

Misalignment Switch

ꄴPageup： Emergency Stop Switch
ꄲPagedown： Intrinsically Safe Level Meter

Product Details

ExibI explosion-proof certified.

Used to protect the belt conveyer when misalignment of the belt occurs in the coal dust/gas environment of underground coal mines.



Specification

  • Type Reference: GEJ10/45
  • Protection Degree: IP54
  • Misalignment Actuate  Threshold: 10° for Cat.1, 45°for Cat.2
  • Number of Contacts: 1  NO for each Cat.
  • Rating of Contacts:  DC24V 1A
  • Reset: Automatic  Reset
  • Actuation Direction:  Mono-direction
  • Tolerance of  Actuation Angle: ± 2°
  • Actuation Force of  Spring Arm: 20N for Cat.1, 25N for Cat.2, Tolerance ±2N
  • Maximum Actuate Angle  of Spring Arm: not less than 70°
  • Contacts Contact  Resistance: Less than 0.1Ω, not more than0.2Ω after shock or impact.
  • Reset angle: 4°  ± 1°
