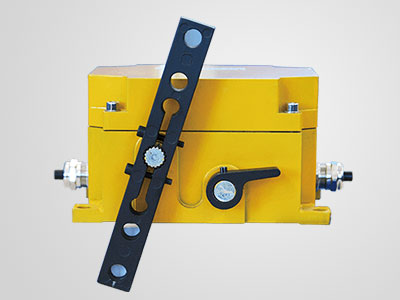

Emergency Stop Switch

Product Details

ExibI explosion-proof certified.

Suitable for measurement of rotation angle of Servo device, Position Control, and Monitoring system in the coal dust/gas environment of underground coal mines. Mainly used in elevator control system to provide signal for detection of the height and speed of the hoisting.

Specification

• Type Reference: GSG1000
• Protection Degree: IPxx
• Intrinsic Safety  Rating Voltage: DC24V
• Intrinsic Safety  Rating Current: 45mA
• Response Frequency:  Max. 100kHz
• Difference of Output  Phase Angle: 90±45° of Phase A with Phase B
• Startup Torque: Max.  1 mN·m
• Rotation Inertia: Max. 1×10-6kg•m2
• Maximum Rotation Speed: 6000r/min
• Force Pressure: 30N Radial, 20N Axial
